Dec 16, 2023
3 min read
Cover Image

Use cdk-notifier to compare changes in pull requests

See how cdk-notifier can help to compare which cdk changes will be applied after merging a pull request

Use case

Especially in serverless environments, features will be created with ephemeral stacks, which will be deleted after merging to the main branch. Comparing the cdk diff between the feature branch and the main branch will help to understand which changes will be applied after merging the pull request.

Some changes, like renaming a dynamodb table or updating more than one dynamodb index, will work if the changes are made before deploying the feature stack but fail if the changes are applied to an existing stack.

The cdk-notifer will help to identify these changes.

cdk-notifier

See here for more information about the cdk-notifier: https://github.com/karlderkaefer/cdk-notifier

GitHub Action

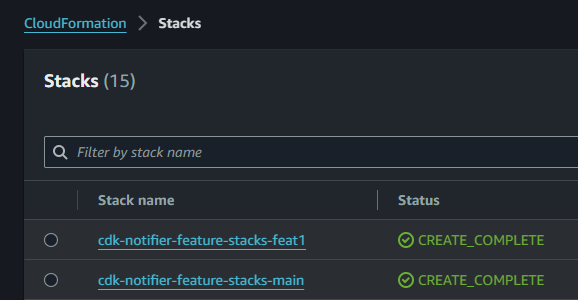

This setting has a deployed stack from the main branch, for the feature development a new branch feat1 is created and deployed as a new stack.

stack-overview

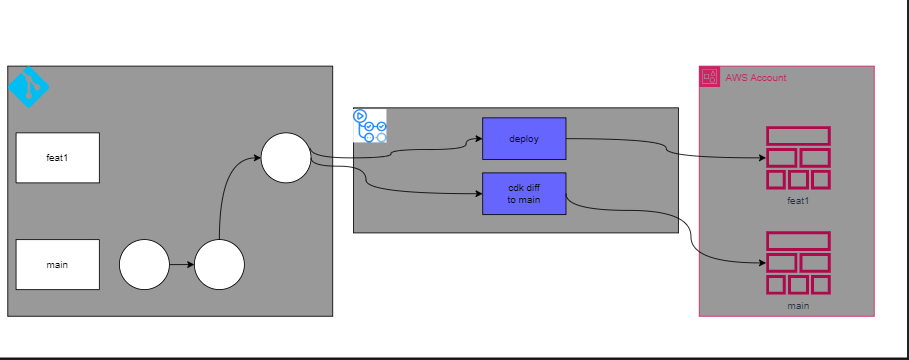

In the pull request the cdk-notifier action is added to the workflow and create a diff from the feat1 branch files with the BRANCH_NAME env variable for main to run the diff agianst the main stack. The diff output will be added to the pull request as a comment via the cdk-notifier.

- name: Check diff to main
  run: |
    npm ci
    echo "check the diff to main"
    BRANCH_NAME=main npx cdk diff --app cdk.out --progress=events &> >(tee cdk.log)
    echo "create cdk-notifier report"
    echo "BRANCH_NAME: $BRANCH_NAME"
    echo "GITHUB_OWNER: $GITHUB_OWNER"
    echo "GITHUB_REPO: $GITHUB_REPO"
    cdk-notifier \
    --owner ${{ env.GITHUB_OWNER }} \
    --repo ${{ env.GITHUB_REPO }} \
    --token ${{ secrets.GITHUB_TOKEN }} \
    --log-file ./cdk.log \
    --tag-id diff-to-main \
    --pull-request-id ${{ env.PULL_REQUEST_ID }} \
    --vcs github \
    --ci circleci \
    --template extendedWithResources

https://github.com/JohannesKonings/cdk-notifier-examples/blob/main/.github/workflows/cdk-diff.yml

pipeline in pull request

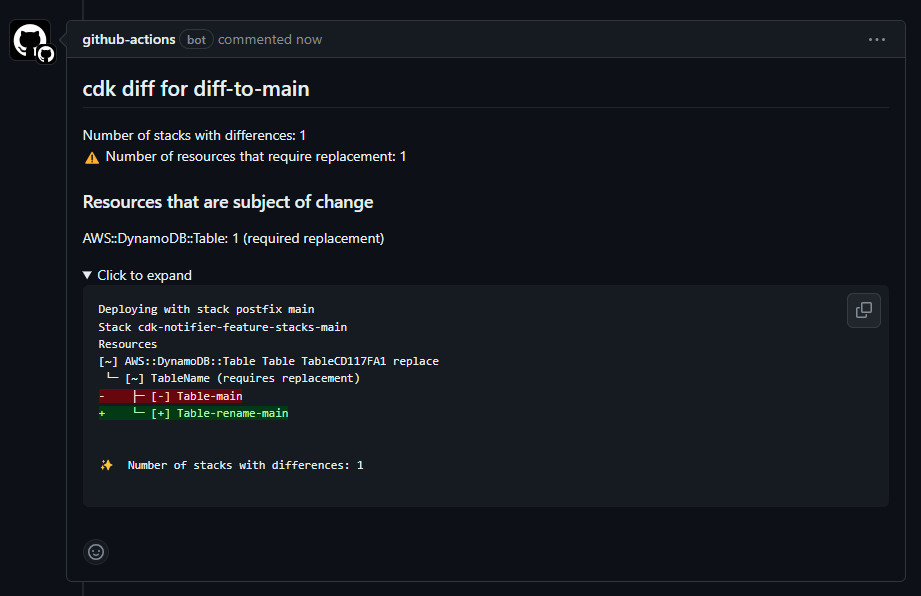

The comment looks like this:

PR comment https://github.com/JohannesKonings/cdk-notifier-examples/pull/4#issuecomment-1858909147

The extended template parameter of the cdk-notifier displays in this setting also a warning that the dynamodb requires a replacement. In some cases, this could be unintended and be reverted securely in the feature branch before merging. That is a nice feature besides the overview of the changes, which is itself helpful in making these changes more visible.

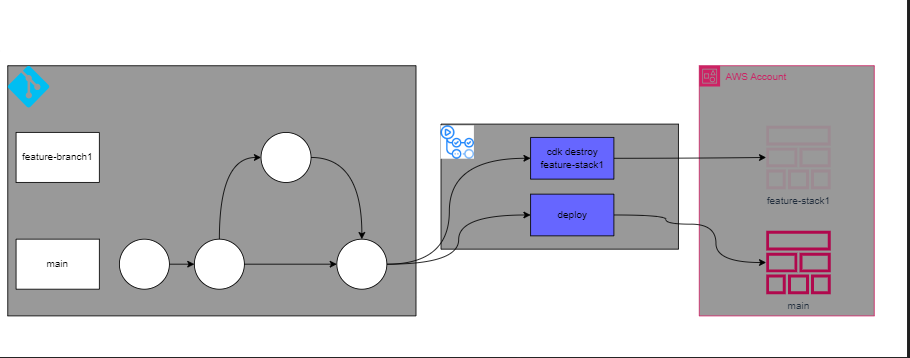

After the merge, the feature stack will be destroyed, and the main stack will be updated.

pipeline after merge

Code

https://github.com/JohannesKonings/cdk-notifier-examples
