Aurora PostgreSQL Serverless (Express configuration) with CDK and Drizzle

March 28, 2026•7 min read

Provision Aurora PostgreSQL serverless using express configuration from CDK with AWS SDK custom resources, then manage schema and seed data with Drizzle Kit and Drizzle Studio.

aws cdk aurora drizzle

Introduction

This post documents a setup for Aurora PostgreSQL express configuration with:

AWS CDK deployment
an AWS SDK-based custom resource (because CloudFormation support is not available yet)
Drizzle Kit and Drizzle Studio for schema and data verification

The setup is not production-ready, but it can be used as a starting point for further development.

AWS launch post: Announcing Amazon Aurora PostgreSQL Serverless database creation in seconds

CDK Custom Resource

Aurora express configuration currently requires calling the RDS API directly. In this setup, CDK uses AwsCustomResource with CreateDBCluster and cleanup calls.

API reference: CreateDBClusterCommand

import { Names, Stack } from "aws-cdk-lib";
import { Effect, PolicyStatement } from "aws-cdk-lib/aws-iam";
import {
  AwsCustomResource,
  AwsCustomResourcePolicy,
  PhysicalResourceId,
} from "aws-cdk-lib/custom-resources";
import { NagSuppressions } from "cdk-nag";
import { Construct } from "constructs";

export type DbAuroraExpressDummyProps = {
  databaseName: string;
  maxCapacity: number;
  minCapacity: number;
  schemaName: string;
};

const toIdentifier = (value: string, maxLength: number): string => {
  const normalized = value.toLowerCase().replace(/[^a-z0-9-]/g, "-");
  const compacted = normalized.replace(/-+/g, "-").replace(/^-|-$/g, "");
  if (compacted.length <= maxLength) {
    return compacted;
  }
  return compacted.slice(0, maxLength).replace(/-+$/g, "");
};

export class DbAuroraExpressDummy extends Construct {
  public readonly clusterArn: string;
  public readonly databaseName: string;
  public readonly schemaName: string;

  constructor(scope: Construct, id: string, props: DbAuroraExpressDummyProps) {
    super(scope, id);

    this.databaseName = props.databaseName;
    this.schemaName = props.schemaName;
    const minCapacity = props.minCapacity;
    const maxCapacity = props.maxCapacity;

    const stack = Stack.of(this);
    const baseIdentifier = toIdentifier(`${Names.uniqueId(this)}`, 63);
    // Aurora Express creates an instance identifier from the cluster identifier
    // (suffix like "-instance-1"), so keep the cluster id shorter than 63 chars.
    const clusterIdentifier = toIdentifier(`${baseIdentifier}-aurora`, 52);

    const instanceIdentifier = `${clusterIdentifier}-instance-1`;

    const clusterResource = new AwsCustomResource(this, "ExpressClusterFallback", {
      policy: AwsCustomResourcePolicy.fromStatements([
        new PolicyStatement({
          effect: Effect.ALLOW,
          actions: [
            "ec2:DescribeAvailabilityZones",
            "iam:CreateServiceLinkedRole",
            "rds:CreateDBCluster",
            "rds:CreateDBInstance",
            "rds:DeleteDBCluster",
            "rds:DeleteDBInstance",
            "rds:DescribeDBClusters",
            "rds:EnableInternetAccessGateway",
          ],
          resources: ["*"],
        }),
      ]),
      installLatestAwsSdk: true,
      onCreate: {
        action: "createDBCluster",
        service: "RDS",
        ignoreErrorCodesMatching: "DBClusterAlreadyExistsFault",
        physicalResourceId: PhysicalResourceId.of(clusterIdentifier),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
          Engine: "aurora-postgresql",
          WithExpressConfiguration: true,
          // Keep explicit ACU limits while using Aurora express defaults.
          ServerlessV2ScalingConfiguration: {
            MinCapacity: minCapacity,
            MaxCapacity: maxCapacity,
          },
        },
      },
      onUpdate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(clusterIdentifier),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
          Engine: "aurora-postgresql",
          WithExpressConfiguration: true,
          // Keep explicit ACU limits while using Aurora express defaults.
          ServerlessV2ScalingConfiguration: {
            MinCapacity: minCapacity,
            MaxCapacity: maxCapacity,
          },
        },
      },
      onDelete: {
        action: "deleteDBCluster",
        service: "RDS",
        ignoreErrorCodesMatching: "DBClusterNotFoundFault",
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
          DeleteAutomatedBackups: true,
          SkipFinalSnapshot: true,
        },
      },
    });

    const clusterLookupResource = new AwsCustomResource(this, "ExpressClusterLookup", {
      policy: AwsCustomResourcePolicy.fromStatements([
        new PolicyStatement({
          effect: Effect.ALLOW,
          actions: ["rds:DescribeDBClusters"],
          resources: ["*"],
        }),
      ]),
      installLatestAwsSdk: true,
      onCreate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-lookup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
      onUpdate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-lookup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
    });
    clusterLookupResource.node.addDependency(clusterResource);

    const instanceCleanupResource = new AwsCustomResource(this, "ExpressInstanceCleanup", {
      policy: AwsCustomResourcePolicy.fromStatements([
        new PolicyStatement({
          effect: Effect.ALLOW,
          actions: ["rds:DeleteDBInstance", "rds:DescribeDBInstances", "rds:DescribeDBClusters"],
          resources: ["*"],
        }),
      ]),
      installLatestAwsSdk: true,
      onCreate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-instance-cleanup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
      onUpdate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-instance-cleanup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
      onDelete: {
        action: "deleteDBInstance",
        service: "RDS",
        ignoreErrorCodesMatching: "DBInstanceNotFoundFault|InvalidDBInstanceStateFault",
        parameters: {
          DBInstanceIdentifier: instanceIdentifier,
          DeleteAutomatedBackups: true,
          SkipFinalSnapshot: true,
        },
      },
    });
    instanceCleanupResource.node.addDependency(clusterResource);

    this.clusterArn = clusterLookupResource.getResponseField("DBClusters.0.DBClusterArn");
  }
}

Aurora deployment observations

From Aurora PostgreSQL express configuration documentation and deployment output:

The cluster is created without VPC association.
Internet access gateway is enabled for connectivity.
IAM authentication is required for gateway-based access.
Encryption uses an AWS/RDS managed key (a customer-managed KMS key cannot be selected at create time in this flow).
Data API is disabled by default at create time; it can be enabled later, with authentication constraints documented by AWS (Express configuration settings, enabling, usage and auth model). I have not managed to get Data API working with this express setup yet.

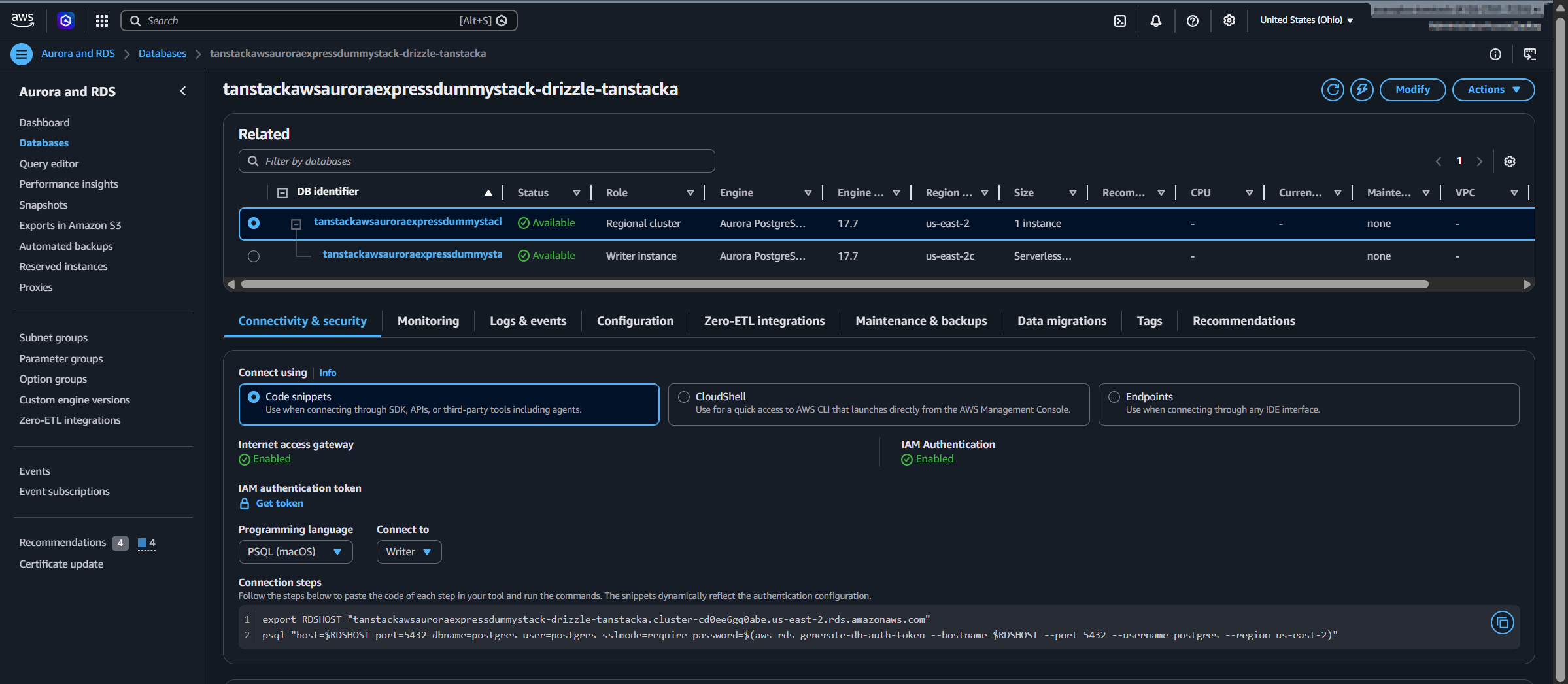

Aurora cluster deployed with express configuration

Teardown behavior

The custom resource includes explicit delete calls for both cluster and instance identifiers. During stack deletion, the cluster and instance cleanup sequence is visible in the AWS console. This is useful for ephemeral feature stacks where database infrastructure should be created and removed per branch or short-lived environment.

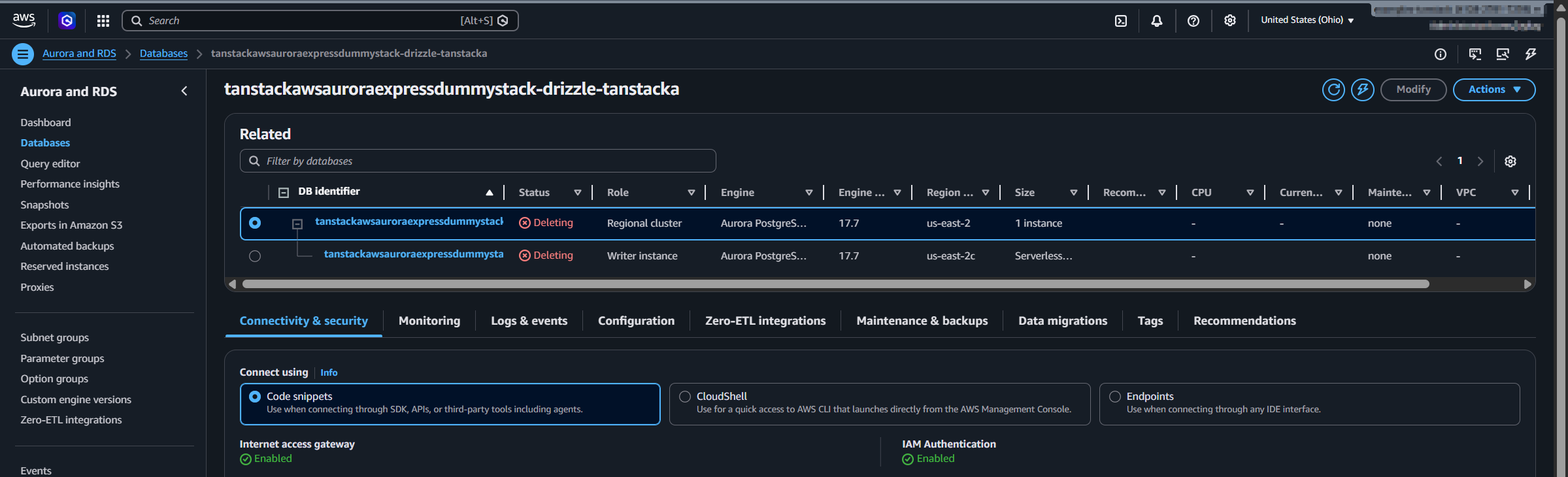

Aurora cluster deletion state

Drizzle integration

Drizzle is used for schema push, local studio inspection, and a simple seed script. Environment variables in this setup are managed with Varlock.

Varlock documentation

Drizzle ORM documentation

This setup was tested with the Drizzle beta track, which is expected to become v1 soon.

Required packages

Install these npm packages before running the examples:

Runtime dependencies: vp add @aws-sdk/rds-signer drizzle-orm pg varlock
Dev/tooling dependencies: vp add -D drizzle-kit @types/pg

Note: this repository uses Vite+, so commands in this post use vp wrappers (such as vp add, vp exec, and vp run) instead of direct npm or pnpm commands.

Configuration (`drizzle-kit`)

import { Signer } from "@aws-sdk/rds-signer";
import { defineConfig } from "drizzle-kit";
import { ENV } from "varlock/env";

const hostname = ENV.HOSTNAME;
const port = 5432;
const username = "postgres";
const database = "postgres";

const signer = new Signer({
  region: ENV.AWS_REGION,
  hostname,
  port,
  username,
});

const password = await signer.getAuthToken();

export default defineConfig({
  dialect: "postgresql",
  schema: "dummySchema.ts",
  dbCredentials: {
    host: hostname,
    port,
    user: username,
    password,
    database,
    ssl: true,
  },
});

Schema

import { integer, pgSchema, text } from "drizzle-orm/pg-core";

export const DUMMY_SCHEMA_NAME = "dummy";
export const dummySchema = pgSchema(DUMMY_SCHEMA_NAME);

export const dummyTable = dummySchema.table("dummy_table", {
  id: integer("id").primaryKey(),
  name: text("name").notNull(),
});

Run this command to apply schema changes: vp exec varlock run -- vp exec drizzle-kit push --config=drizzle-user-password.config.ts

Run this command to open Drizzle Studio: vp exec varlock run -- vp exec drizzle-kit studio --config=drizzle-user-password.config.ts

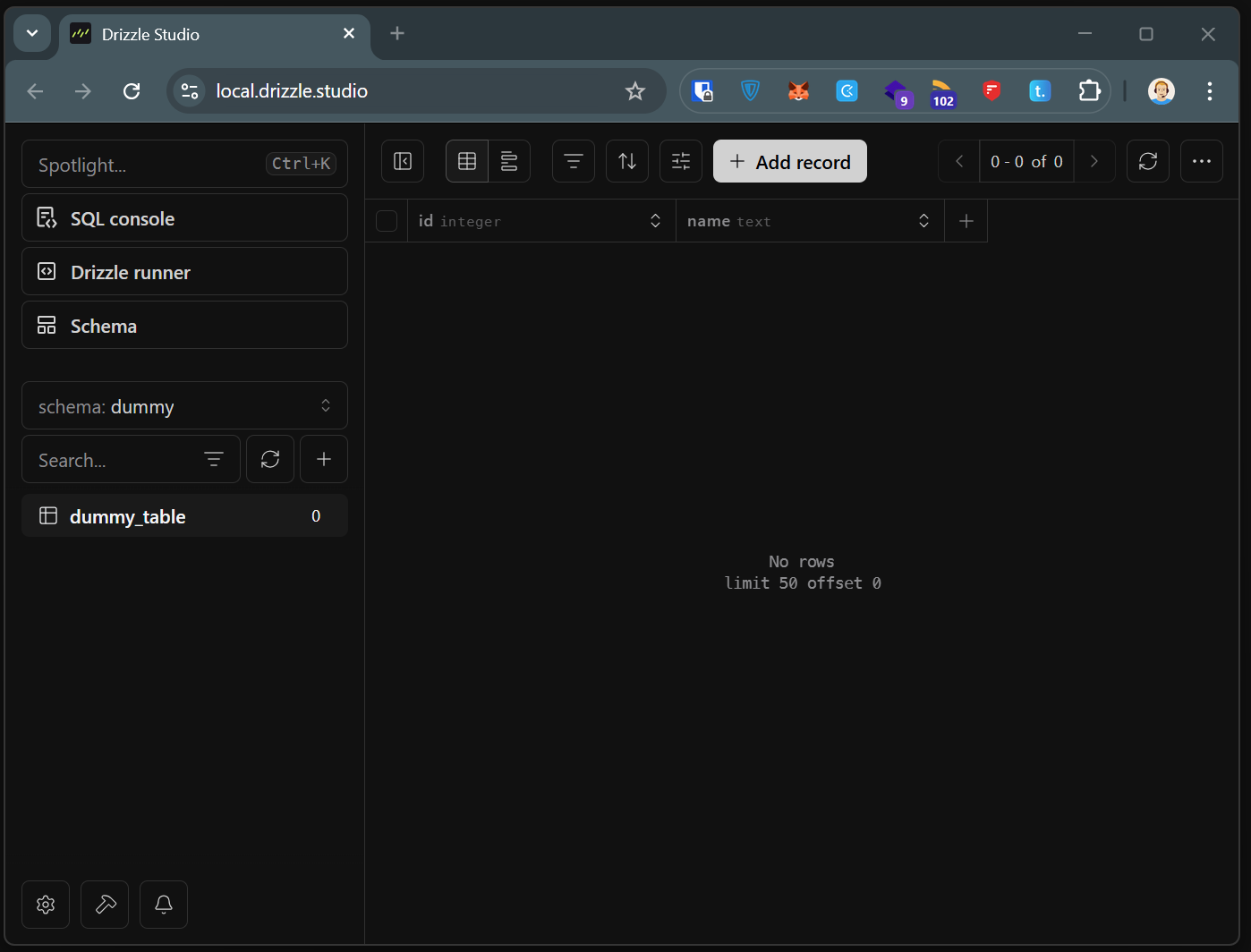

Studio before seeding (table exists, no rows):

Drizzle Studio before seeding

Seeding script

#!/usr/bin/env node
/* oxlint-disable no-console */

import { Signer } from "@aws-sdk/rds-signer";
import { drizzle } from "drizzle-orm/node-postgres";
import { ENV } from "varlock/env";
import { dummyTable } from "../dummySchema.ts";

const hostname = ENV.HOSTNAME;
const port = 5432;
const username = "postgres";
const database = "postgres";

const signer = new Signer({
  region: ENV.AWS_REGION,
  hostname,
  port,
  username,
});

const password = await signer.getAuthToken();

console.log(ENV.HOSTNAME);
console.log(ENV.AWS_REGION);

const db = drizzle({
  connection: {
    host: hostname,
    port,
    user: username,
    password,
    database,
    ssl: true,
  },
});

await db.delete(dummyTable);

const insertResult = await db.insert(dummyTable).values([
  { id: 1, name: "Dummy 1" },
  { id: 2, name: "Dummy 2" },
  { id: 3, name: "Dummy 3" },
]);

console.log(insertResult);

vp exec varlock run -- node scripts/seed-dummy.ts

Result

Schema dummy.dummy_table is created successfully via Drizzle Kit.
Seed script inserts three rows (id 1..3).
Drizzle Studio confirms data visibility through the IAM-authenticated Aurora Express connection.

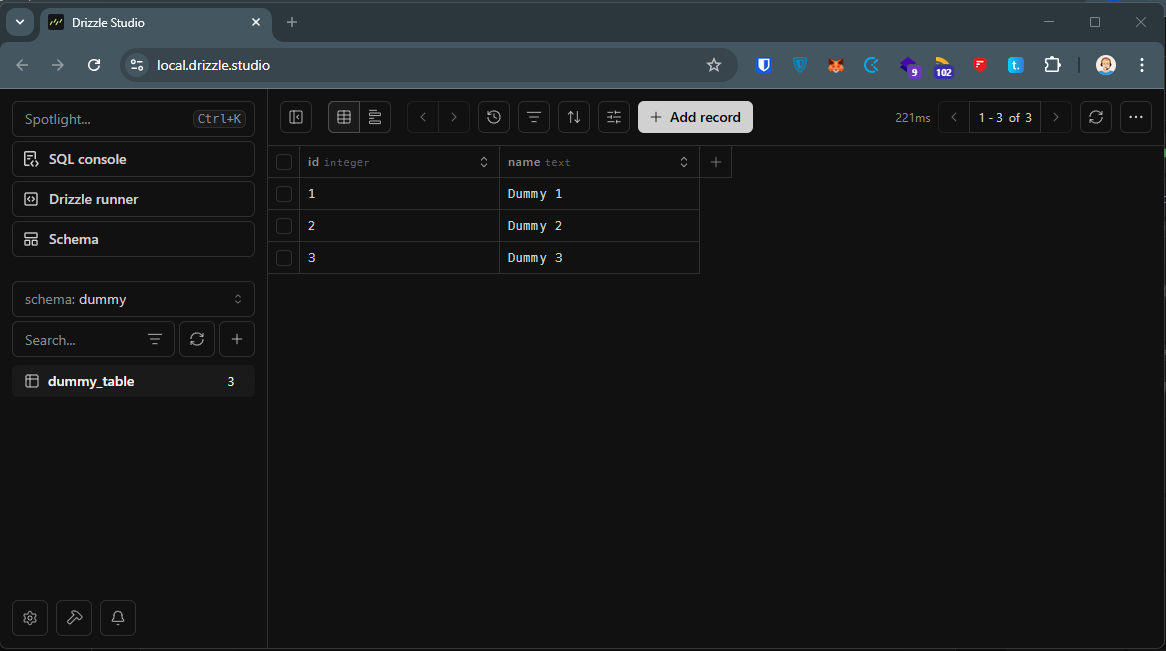

Drizzle Studio after seeding with three rows

Conclusion

Aurora PostgreSQL express configuration can be integrated into a CDK workflow today by using AWS SDK custom resources for create/delete operations. Drizzle works with this setup when authentication tokens are generated through the RDS signer and passed to Drizzle tooling/runtime.

Sources and References

AWS announcement: Announcing Amazon Aurora PostgreSQL Serverless database creation in seconds
Aurora Express configuration docs: Creating and connecting to an Aurora PostgreSQL cluster with express configuration
RDS Data API enablement: Enabling the Amazon RDS Data API
RDS Data API usage/auth: Using the Amazon RDS Data API
RDS API (SDK v3): CreateDBClusterCommand
Varlock: varlock.dev
Drizzle ORM: orm.drizzle.team
Drizzle Kit: orm.drizzle.team/docs/drizzle-kit-overview

Part 1 of 1 · Aurora Drizzle

Aurora PostgreSQL Serverless (Express configuration) with CDK and Drizzle

March 28, 2026•7 min read

Provision Aurora PostgreSQL serverless using express configuration from CDK with AWS SDK custom resources, then manage schema and seed data with Drizzle Kit and Drizzle Studio.

aws cdk aurora drizzle

Introduction

This post documents a setup for Aurora PostgreSQL express configuration with:

AWS CDK deployment
an AWS SDK-based custom resource (because CloudFormation support is not available yet)
Drizzle Kit and Drizzle Studio for schema and data verification

The setup is not production-ready, but it can be used as a starting point for further development.

AWS launch post: Announcing Amazon Aurora PostgreSQL Serverless database creation in seconds

CDK Custom Resource

Aurora express configuration currently requires calling the RDS API directly. In this setup, CDK uses AwsCustomResource with CreateDBCluster and cleanup calls.

API reference: CreateDBClusterCommand

import { Names, Stack } from "aws-cdk-lib";
import { Effect, PolicyStatement } from "aws-cdk-lib/aws-iam";
import {
  AwsCustomResource,
  AwsCustomResourcePolicy,
  PhysicalResourceId,
} from "aws-cdk-lib/custom-resources";
import { NagSuppressions } from "cdk-nag";
import { Construct } from "constructs";

export type DbAuroraExpressDummyProps = {
  databaseName: string;
  maxCapacity: number;
  minCapacity: number;
  schemaName: string;
};

const toIdentifier = (value: string, maxLength: number): string => {
  const normalized = value.toLowerCase().replace(/[^a-z0-9-]/g, "-");
  const compacted = normalized.replace(/-+/g, "-").replace(/^-|-$/g, "");
  if (compacted.length <= maxLength) {
    return compacted;
  }
  return compacted.slice(0, maxLength).replace(/-+$/g, "");
};

export class DbAuroraExpressDummy extends Construct {
  public readonly clusterArn: string;
  public readonly databaseName: string;
  public readonly schemaName: string;

  constructor(scope: Construct, id: string, props: DbAuroraExpressDummyProps) {
    super(scope, id);

    this.databaseName = props.databaseName;
    this.schemaName = props.schemaName;
    const minCapacity = props.minCapacity;
    const maxCapacity = props.maxCapacity;

    const stack = Stack.of(this);
    const baseIdentifier = toIdentifier(`${Names.uniqueId(this)}`, 63);
    // Aurora Express creates an instance identifier from the cluster identifier
    // (suffix like "-instance-1"), so keep the cluster id shorter than 63 chars.
    const clusterIdentifier = toIdentifier(`${baseIdentifier}-aurora`, 52);

    const instanceIdentifier = `${clusterIdentifier}-instance-1`;

    const clusterResource = new AwsCustomResource(this, "ExpressClusterFallback", {
      policy: AwsCustomResourcePolicy.fromStatements([
        new PolicyStatement({
          effect: Effect.ALLOW,
          actions: [
            "ec2:DescribeAvailabilityZones",
            "iam:CreateServiceLinkedRole",
            "rds:CreateDBCluster",
            "rds:CreateDBInstance",
            "rds:DeleteDBCluster",
            "rds:DeleteDBInstance",
            "rds:DescribeDBClusters",
            "rds:EnableInternetAccessGateway",
          ],
          resources: ["*"],
        }),
      ]),
      installLatestAwsSdk: true,
      onCreate: {
        action: "createDBCluster",
        service: "RDS",
        ignoreErrorCodesMatching: "DBClusterAlreadyExistsFault",
        physicalResourceId: PhysicalResourceId.of(clusterIdentifier),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
          Engine: "aurora-postgresql",
          WithExpressConfiguration: true,
          // Keep explicit ACU limits while using Aurora express defaults.
          ServerlessV2ScalingConfiguration: {
            MinCapacity: minCapacity,
            MaxCapacity: maxCapacity,
          },
        },
      },
      onUpdate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(clusterIdentifier),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
          Engine: "aurora-postgresql",
          WithExpressConfiguration: true,
          // Keep explicit ACU limits while using Aurora express defaults.
          ServerlessV2ScalingConfiguration: {
            MinCapacity: minCapacity,
            MaxCapacity: maxCapacity,
          },
        },
      },
      onDelete: {
        action: "deleteDBCluster",
        service: "RDS",
        ignoreErrorCodesMatching: "DBClusterNotFoundFault",
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
          DeleteAutomatedBackups: true,
          SkipFinalSnapshot: true,
        },
      },
    });

    const clusterLookupResource = new AwsCustomResource(this, "ExpressClusterLookup", {
      policy: AwsCustomResourcePolicy.fromStatements([
        new PolicyStatement({
          effect: Effect.ALLOW,
          actions: ["rds:DescribeDBClusters"],
          resources: ["*"],
        }),
      ]),
      installLatestAwsSdk: true,
      onCreate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-lookup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
      onUpdate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-lookup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
    });
    clusterLookupResource.node.addDependency(clusterResource);

    const instanceCleanupResource = new AwsCustomResource(this, "ExpressInstanceCleanup", {
      policy: AwsCustomResourcePolicy.fromStatements([
        new PolicyStatement({
          effect: Effect.ALLOW,
          actions: ["rds:DeleteDBInstance", "rds:DescribeDBInstances", "rds:DescribeDBClusters"],
          resources: ["*"],
        }),
      ]),
      installLatestAwsSdk: true,
      onCreate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-instance-cleanup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
      onUpdate: {
        action: "describeDBClusters",
        service: "RDS",
        physicalResourceId: PhysicalResourceId.of(`${clusterIdentifier}-instance-cleanup`),
        parameters: {
          DBClusterIdentifier: clusterIdentifier,
        },
      },
      onDelete: {
        action: "deleteDBInstance",
        service: "RDS",
        ignoreErrorCodesMatching: "DBInstanceNotFoundFault|InvalidDBInstanceStateFault",
        parameters: {
          DBInstanceIdentifier: instanceIdentifier,
          DeleteAutomatedBackups: true,
          SkipFinalSnapshot: true,
        },
      },
    });
    instanceCleanupResource.node.addDependency(clusterResource);

    this.clusterArn = clusterLookupResource.getResponseField("DBClusters.0.DBClusterArn");
  }
}

Aurora deployment observations

From Aurora PostgreSQL express configuration documentation and deployment output:

The cluster is created without VPC association.
Internet access gateway is enabled for connectivity.
IAM authentication is required for gateway-based access.
Encryption uses an AWS/RDS managed key (a customer-managed KMS key cannot be selected at create time in this flow).
Data API is disabled by default at create time; it can be enabled later, with authentication constraints documented by AWS (Express configuration settings, enabling, usage and auth model). I have not managed to get Data API working with this express setup yet.

Aurora cluster deployed with express configuration

Teardown behavior

Aurora cluster deletion state

Drizzle integration

Drizzle is used for schema push, local studio inspection, and a simple seed script. Environment variables in this setup are managed with Varlock.

Varlock documentation

Drizzle ORM documentation

This setup was tested with the Drizzle beta track, which is expected to become v1 soon.

Required packages

Install these npm packages before running the examples:

Runtime dependencies: vp add @aws-sdk/rds-signer drizzle-orm pg varlock
Dev/tooling dependencies: vp add -D drizzle-kit @types/pg

Note: this repository uses Vite+, so commands in this post use vp wrappers (such as vp add, vp exec, and vp run) instead of direct npm or pnpm commands.

Configuration (`drizzle-kit`)

import { Signer } from "@aws-sdk/rds-signer";
import { defineConfig } from "drizzle-kit";
import { ENV } from "varlock/env";

const hostname = ENV.HOSTNAME;
const port = 5432;
const username = "postgres";
const database = "postgres";

const signer = new Signer({
  region: ENV.AWS_REGION,
  hostname,
  port,
  username,
});

const password = await signer.getAuthToken();

export default defineConfig({
  dialect: "postgresql",
  schema: "dummySchema.ts",
  dbCredentials: {
    host: hostname,
    port,
    user: username,
    password,
    database,
    ssl: true,
  },
});

Schema

import { integer, pgSchema, text } from "drizzle-orm/pg-core";

export const DUMMY_SCHEMA_NAME = "dummy";
export const dummySchema = pgSchema(DUMMY_SCHEMA_NAME);

export const dummyTable = dummySchema.table("dummy_table", {
  id: integer("id").primaryKey(),
  name: text("name").notNull(),
});

Run this command to apply schema changes: vp exec varlock run -- vp exec drizzle-kit push --config=drizzle-user-password.config.ts

Run this command to open Drizzle Studio: vp exec varlock run -- vp exec drizzle-kit studio --config=drizzle-user-password.config.ts

Studio before seeding (table exists, no rows):

Drizzle Studio before seeding

Seeding script

#!/usr/bin/env node
/* oxlint-disable no-console */

import { Signer } from "@aws-sdk/rds-signer";
import { drizzle } from "drizzle-orm/node-postgres";
import { ENV } from "varlock/env";
import { dummyTable } from "../dummySchema.ts";

const hostname = ENV.HOSTNAME;
const port = 5432;
const username = "postgres";
const database = "postgres";

const signer = new Signer({
  region: ENV.AWS_REGION,
  hostname,
  port,
  username,
});

const password = await signer.getAuthToken();

console.log(ENV.HOSTNAME);
console.log(ENV.AWS_REGION);

const db = drizzle({
  connection: {
    host: hostname,
    port,
    user: username,
    password,
    database,
    ssl: true,
  },
});

await db.delete(dummyTable);

const insertResult = await db.insert(dummyTable).values([
  { id: 1, name: "Dummy 1" },
  { id: 2, name: "Dummy 2" },
  { id: 3, name: "Dummy 3" },
]);

console.log(insertResult);

vp exec varlock run -- node scripts/seed-dummy.ts

Result

Schema dummy.dummy_table is created successfully via Drizzle Kit.
Seed script inserts three rows (id 1..3).
Drizzle Studio confirms data visibility through the IAM-authenticated Aurora Express connection.

Drizzle Studio after seeding with three rows

Conclusion

Sources and References

AWS announcement: Announcing Amazon Aurora PostgreSQL Serverless database creation in seconds
Aurora Express configuration docs: Creating and connecting to an Aurora PostgreSQL cluster with express configuration
RDS Data API enablement: Enabling the Amazon RDS Data API
RDS Data API usage/auth: Using the Amazon RDS Data API
RDS API (SDK v3): CreateDBClusterCommand
Varlock: varlock.dev
Drizzle ORM: orm.drizzle.team
Drizzle Kit: orm.drizzle.team/docs/drizzle-kit-overview

Introduction

CDK Custom Resource

Aurora deployment observations

Teardown behavior

Drizzle integration

Required packages

Configuration (drizzle-kit)

Schema

Seeding script

Result

Conclusion

Sources and References

Introduction

CDK Custom Resource

Aurora deployment observations

Teardown behavior

Drizzle integration

Required packages

Configuration (drizzle-kit)

Schema

Seeding script

Result

Conclusion

Sources and References

Configuration (`drizzle-kit`)

Configuration (`drizzle-kit`)
