CDK Mixin for setting recommended TLS version for API Gateway and endpoint access mode

March 30, 2026•3 min read

Use a type-safe CDK mixin to enforce modern API Gateway TLS policy and endpoint access mode across REST APIs, instead of brittle one-off L1 overrides.

aws cdk mixin

Introduction

API Gateway REST APIs can still come up with legacy TLS defaults that prioritize backward compatibility over a stricter security baseline. If you want a consistent policy such as SecurityPolicy_TLS13_1_3_2025_09 plus EndpointAccessMode.STRICT, wiring this by hand on every API quickly becomes repetitive and easy to miss.

This post shows a cleaner approach: apply a CDK property mixin (CfnRestApiPropsMixin) once, close to app scope, and let that policy flow to each targeted API Gateway REST API.

What changed in 2025: On Nov 19, 2025, AWS announced additional enhanced TLS security policies for API Gateway REST APIs and custom domain names (the SecurityPolicy_* family, including TLS 1.3-only options). (AWS announcement)
What existed before that: REST APIs already supported legacy policies (TLS_1_0 and TLS_1_2), but not the newer hardened policy set. (REST API security policies)
Current default behavior: API Gateway still assigns legacy defaults when you create new resources (TLS_1_0 for Regional and edge-optimized REST APIs, TLS_1_2 for private APIs and domains). (Supported security policies)
Why strict is not default: AWS keeps broad client compatibility as the default. Moving to enhanced policies and STRICT endpoint access mode can break older clients or clients using hostname/SNI patterns that do not satisfy strict checks, so AWS recommends migrating in phases (BASIC first, then STRICT after validation). (AWS Compute Blog migration guidance)

For this reason, this article uses a CDK mixin to codify the stricter choice explicitly, rather than relying on service defaults.

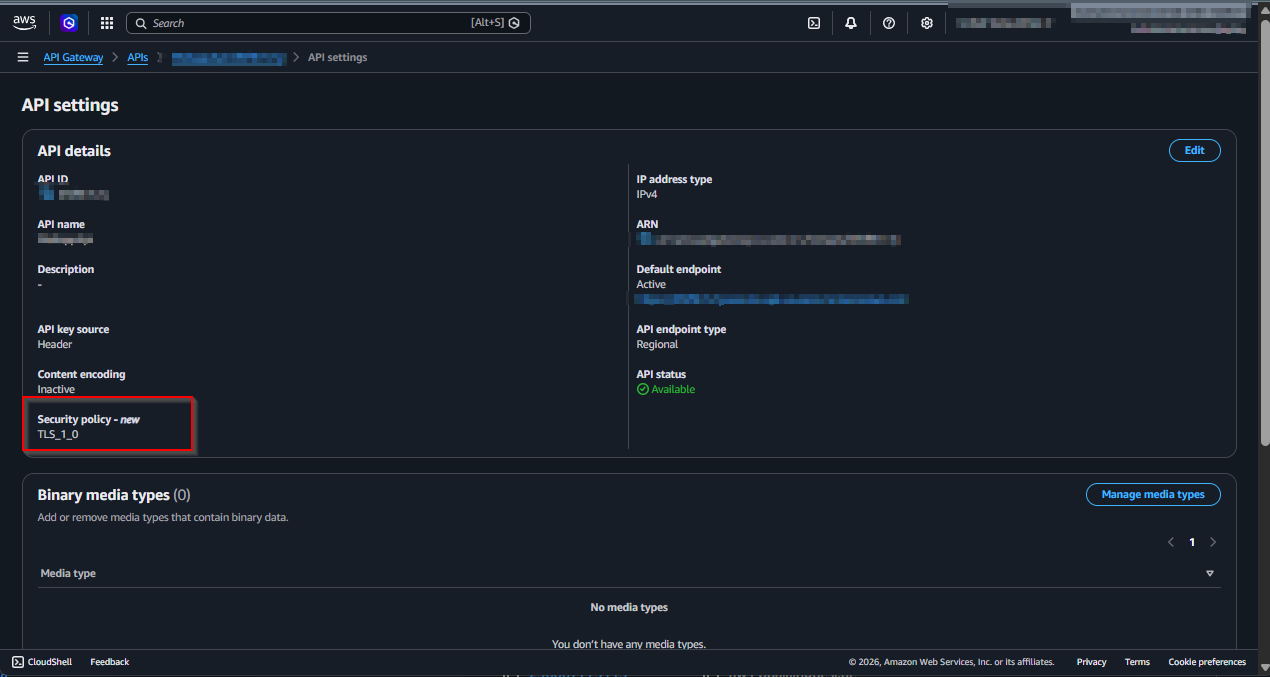

api gw before

Why a CDK mixin for this aspect?

The goal here is not broad reuse. The primary reason is type safety: the mixin extends the L2 RestApi API with compile-time-checked configuration for TLS posture, instead of relying on string-based overrides. That gives earlier feedback, safer refactors, and clearer intent at the construct boundary while preserving L2 ergonomics. An escape hatch would still work, but it shifts the change to ad-hoc, stringly L1 mutations that are easier to break and harder to review.

API GW

import { CfnRestApiPropsMixin } from "@aws-cdk/cfn-property-mixins/aws-apigateway";
import { App, Stack } from "aws-cdk-lib";
import {
  EndpointAccessMode,
  EndpointType,
  RestApi,
  SecurityPolicy,
} from "aws-cdk-lib/aws-apigateway";

const app = new App();
const stack = new Stack(app, "ApiStack");

const apiGw = new RestApi(stack, "ApiGw", {
  endpointConfiguration: { types: [EndpointType.REGIONAL] },
});

apiGw.with(
  new CfnRestApiPropsMixin({
    securityPolicy: SecurityPolicy.TLS13_1_3_2025_09,
    endpointAccessMode: EndpointAccessMode.STRICT,
  }),
);

Result

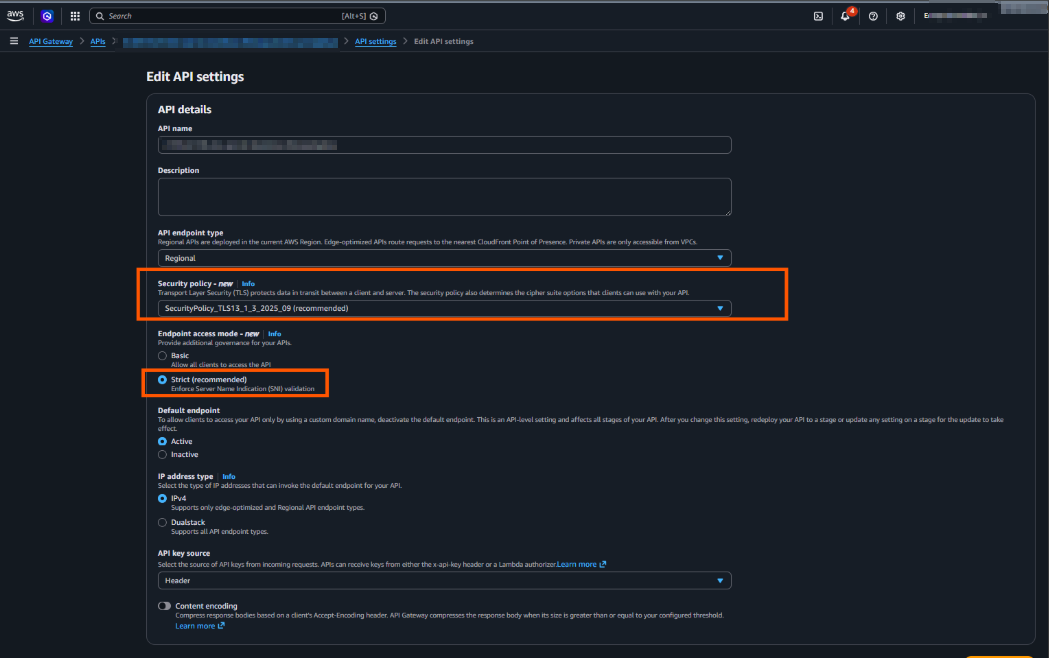

api gw after mixin

Conclusion

If your security baseline requires modern TLS for API Gateway, rely on explicit policy instead of defaults. A CDK mixin keeps the configuration centralized, consistent, and reviewable while still supporting staged rollout (BASIC to STRICT) when client compatibility is uncertain.

Sources and References

Earlier pattern this post builds on: AWS CDK Ephemeral Stacks Cleanup
CDK mixins guide: Mixins - AWS CDK v2 Developer Guide
REST API security policies: Security policies for REST APIs in API Gateway
Default and supported policy matrix: Supported security policies
API model (securityPolicy, endpointAccessMode): CreateRestApi API Reference
Launch announcement (enhanced TLS policies): Amazon API Gateway now supports additional TLS security policies for REST APIs
Deep-dive and migration guidance: Enhancing API security with Amazon API Gateway TLS security policies
